Venue Specs
CAPACITY
Standing - 400
Seated - 140
Note: TOTARA ST is split level, we also have the ability to put on intimate shows with 30 - 50 people in a seated couch setting.

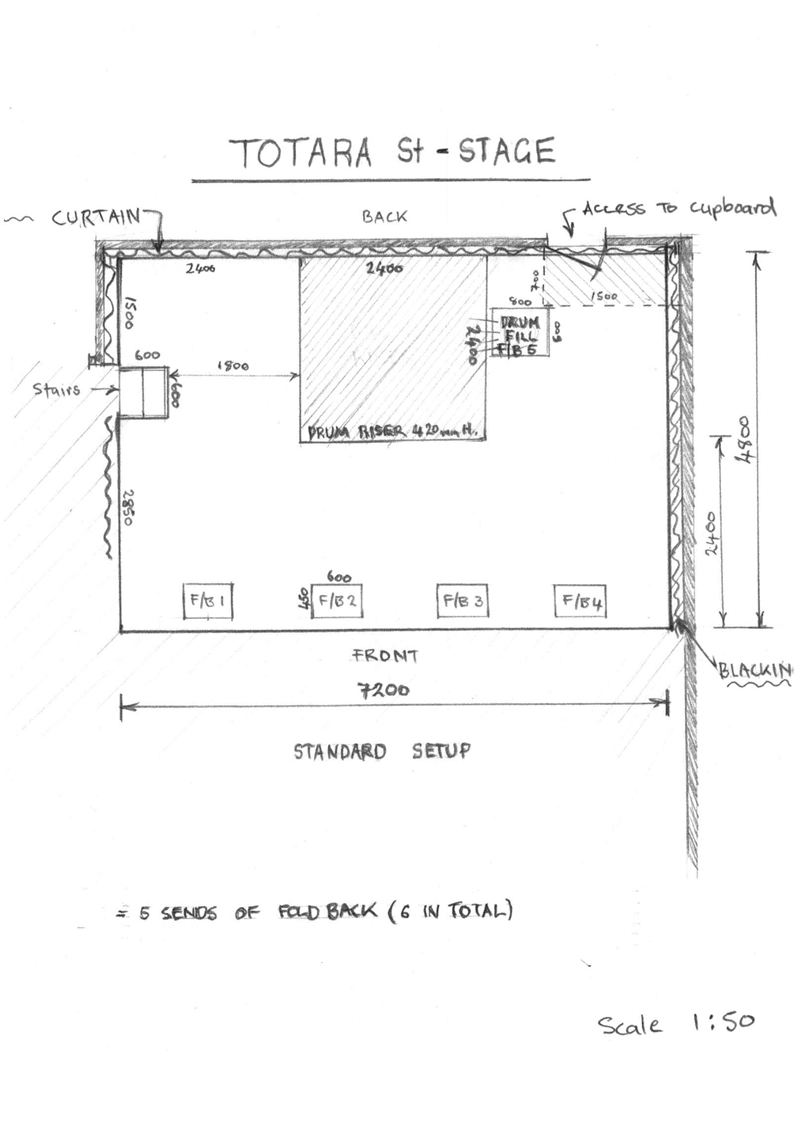

STAGE DIMENSIONS
Small 3.6M X 7.2M
Large 4.8M X 7.2M
SOUND
Front of House
4 x Martin Audio W3 Tops
4 x Martin Audio WSX Subs (2 per side)
Powered by 4X MARTIN AUDIO M.A 4.2 amplifiers
SOUNDCRAFT SI IMPACT console
Foldback
F/back FOH Desk capable of 8 sends
Amps and speakers for 5 sends
4 sends using 4 x Martin LE12J wedges
Drum fill using a QSC KW122 top and a KW181 Sub
NB : Separate foldback mix available by request.
Microphones
Beta 58's - SM 58's - SM57's - PG 81's - SM91 - MD421's
DI's, Stands and Cables
LIGHTING
Desk
Theatrelight Novalink 36
Front Truss
4 x Uranus 18 Led par Fixtures
6 x Par 56's
Back and side
10 x Uranus 18 Led par Fixtures
8 x Par 64's
6 x Par 56's
Additional lights available on request
Moving heads - PAR & LED Cans - Black Light Cannons - Strobe
SMOKE MACHINE
Antari HZ500 Hazer
PROJECTION
We hire a Panasonic PT-VZ585NM at a rate of $175 + gst per show. The screen size that is located on the back wall of the stage is 5M wide X 4M high (from the top of the stage). If a projector is needed for your event you cannot bring one in as ours is hanging and ready to go.
BACKLINE & DJ EQUIPMENT FOR HIRE
- Yamaha stage custom drum kit, 22" kick 10" 12" 14" and 16" toms complete with hardware inc 5 cymbal stand
- Fender Hot Rod Deluxe Guitar Amp
- Ampeg SVT and 8 X 10 Bass Amp
SEATING & FURNITURE
We have a number of seats, couches, bar stools and leaners on site. We also have good relationships with local hire companies if you are in need of extra units.
